Onshore

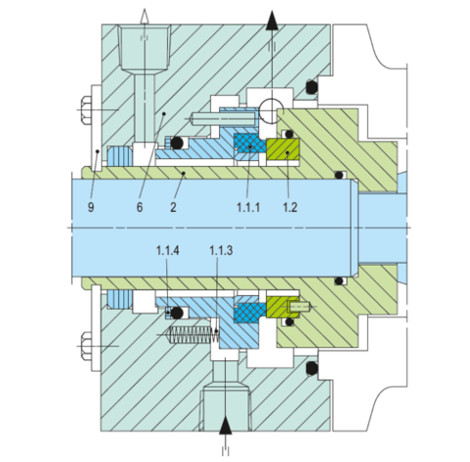

Crude Oil Pump

Seal Type: BH/150

Media Crude Oil (Paraffin wax)
RPM 1850
Temperature 700 C
Pressure 16 Bar

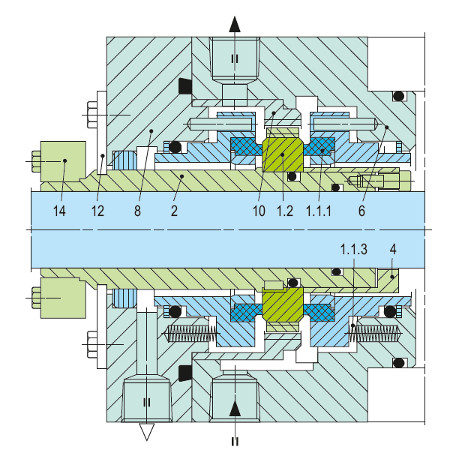

Pipeline Pump

Seal Type: SBPV-D/85

Media Crude Oil
RPM 2980
Temperature 800 C
Pressure 40 Bar

Water Injection Pump

Seal Type: BH-D/125

Media Brine Water with 30% solids
RPM 3200
Temperature 650 C
Pressure 15 Bar

Onshore

To be able to cope with sand, water and gases found in crude oil, pumping systems for mineral oil require heavy duty pumps with reliable engineered mechanical seals that feature durable sliding faces with good emergency running characteristics. Often it is necessary to seal pressures in excess of 100 bar and sliding velocities of over 60 m/s. The ideal seal face combination for such conditions have proven to be high-strength carbons running against silicon carbide.
