Pulp & Paper

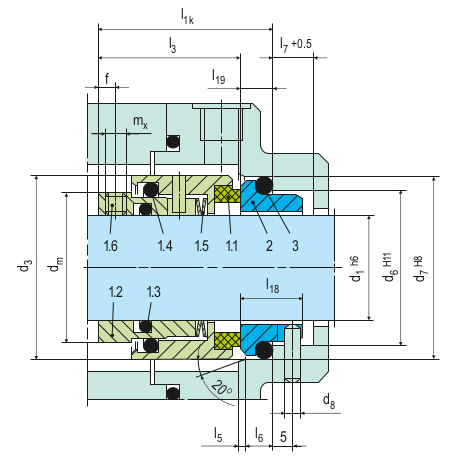

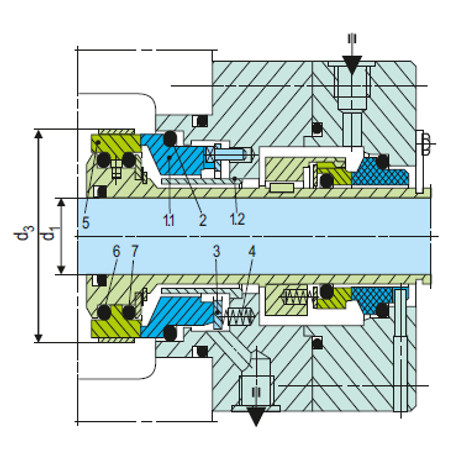

Pressure Grinder

Seal Type: BR-D/420

Media Steam + Fibres
RPM 355
Temperature 1450 C
Pressure 6 Bar

Pulp Pump

Seal Type: BJ977/43

Media Deinking Media
RPM 2950
Temperature 1400 C
Pressure 20 Bar

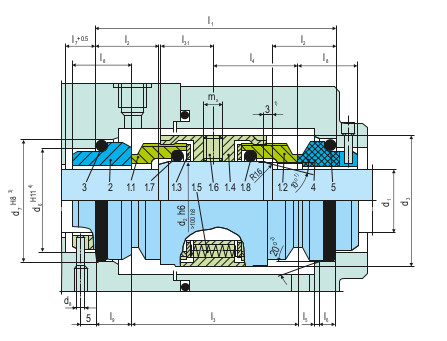

Digesting & Bleaching Pump

Seal Type: U740-D/45

Media Bleaching Agents
RPM 2900
Temperature 1400 C
Pressure 11 Bar

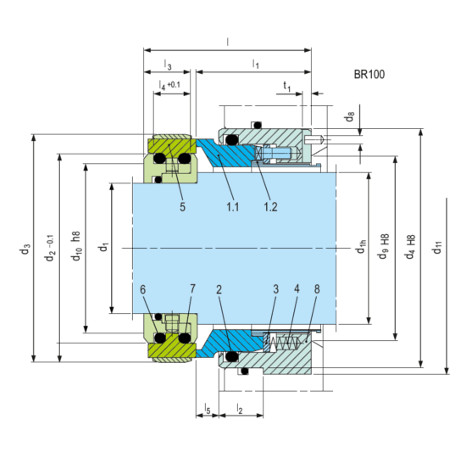

Deinking Pump

Seal Type: BR10/130

Media Pulp with solid contents
RPM 980
Temperature 600 C
Pressure 12 Bar

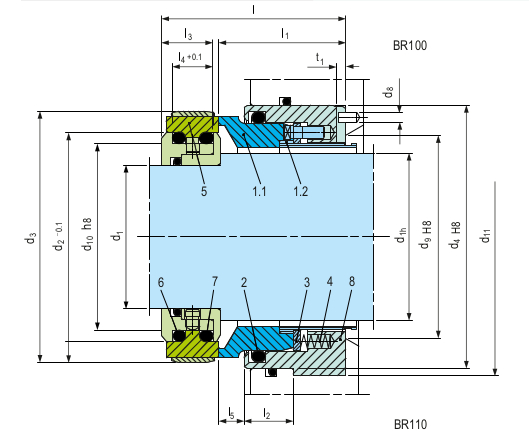

Refiner

Seal Type: B-D/200

Media Wood chips, Lignine, Turpentine, Steam
RPM 1500
Temperature 2000 C
Pressure 16 Bar

Stock Pump

Seal Type: B-D/65

Media Industrial Abrasive Water
RPM 2800
Temperature 1500 C
Pressure 16 Bar

Pulp & Paper

Wood is the most important raw material for the pulp and paper industry. It is either digested to chemical pulp in digesters or reduced to mechanical pulp in grinders or refiners. The pulp produced this way is then graded, bleached and washed and conveyed to the paper machine. There it passes through the various stages such as head box, wire part, press section, drying section and reeling section.
