Offshore

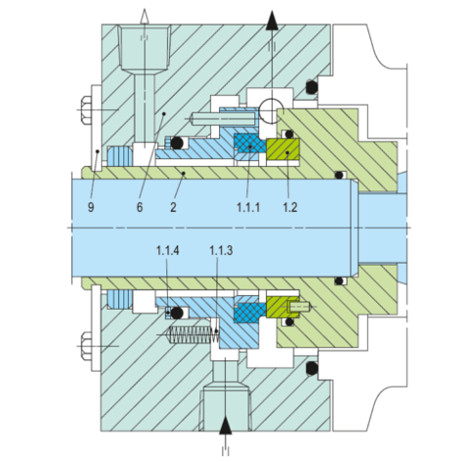

Multiphase Technology

Seal Type: SBV/90

Media Multiphase mixture, gas-70%
RPM 1400
Temperature 750 C
Pressure 65 Bar

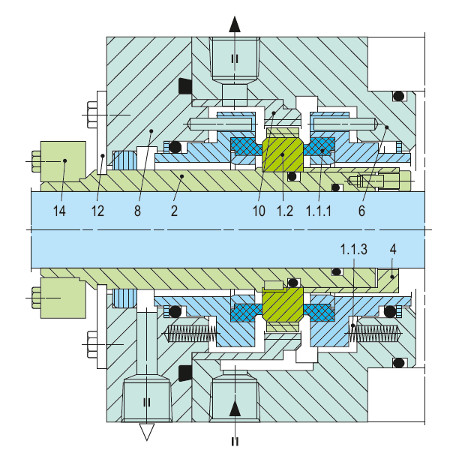

Main Oil Export Pump

Seal Type: BFV-D/125

Media Crude Oil
RPM 3200
Temperature 850 C
Pressure 63 Bar

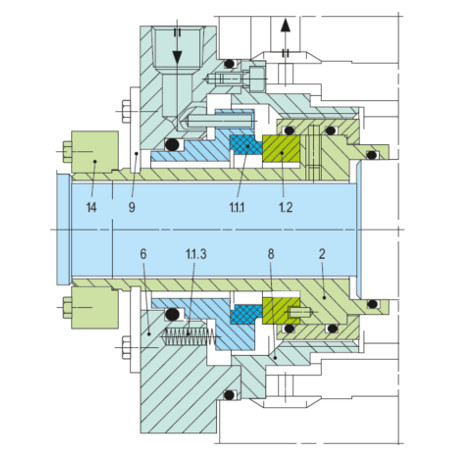

Water Injection Pump

Seal Type: BH/65

Media Oil Platform
RPM 11750
Temperature NA
Pressure 205 bar(g) Discharge Pressure


Offshore

Adverse environmental conditions, high rotational speed and pressure levels as well as corrosive media constituents place demanding requirements on sealing technology used in the offshore production and subsequent conveyance of oil and gas. Not only that but in many cases highly abrasive mixtures of crude oil, water, gas and sand cause a high degree of wear. CS-Seals has proven itself with its heavy-duty mechanical seals with innovative and tailor made seal components with high-strength seal faces , guaranteeing longer service life even in highly stressed pumps.
