Sugar

Flume Water Pump

Seal Type: UG100/43

Media Washing Agents
RPM 2900
Temperature 1400 C
Pressure 12 Bar

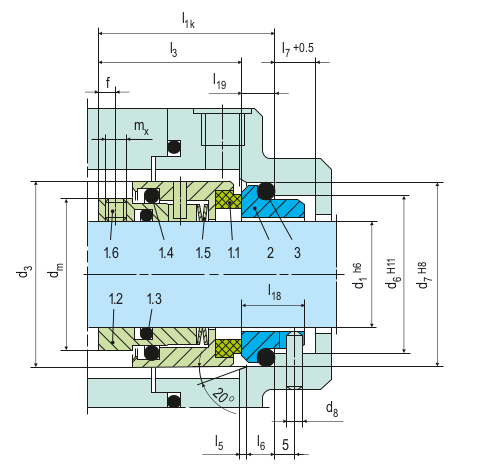

Juice Circulating Pump

Seal Type:BJ977GN/53

Media Sugar Juice
RPM 3200
Temperature 1200 C
Pressure 16 Bar

Thick Juice Pump

Seal Type: BJ977GN/43

Media 75% Sugar Content Juice
RPM 2900
Temperature 1650 C
Pressure 14 Bar

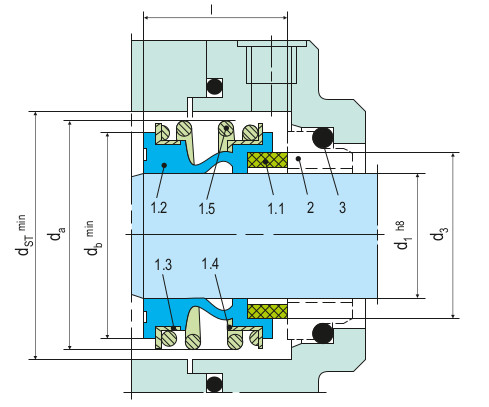

Mash Pump

Seal Type: UG100/38

Media Sugar Juice
RPM 3250
Temperature 1400 C
Pressure 8 Bar

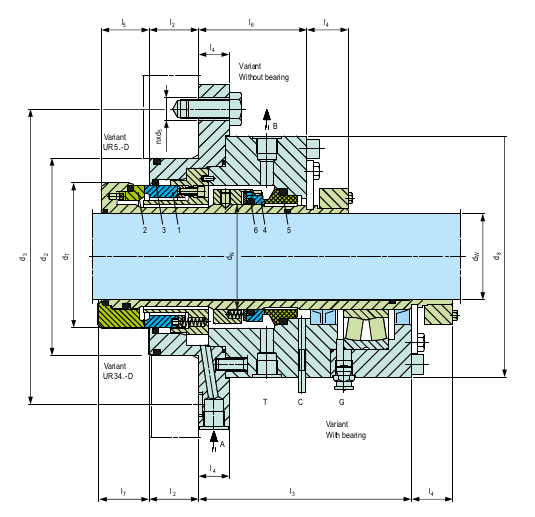

Worm Type Agitator

Seal Type: UR-D/110

Media 45% Sugar Granules
RPM 750
Temperature 1450 C
Pressure 8 Bar

Sugar

Sugar campaigns are over in a relatively short time. For optimum economy and ecology it is all the more important, therefore to have a reliable sealing systems. In the past it was normal for juice pumps to be equipped with double seals to cope with the tendency to crystallization and carbonation. Today the use of single seals is possible in most of the cases due to availability of modern materials and new seal compartment geometries.
