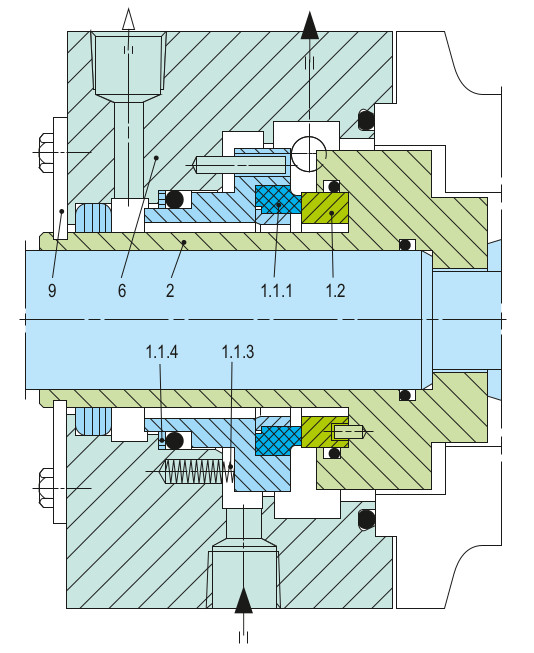

Boiler Circulation Pump

Seal Type: SBPV/55

Media Boiler Water
Temperature 2850 C
Pressure 125 Bar

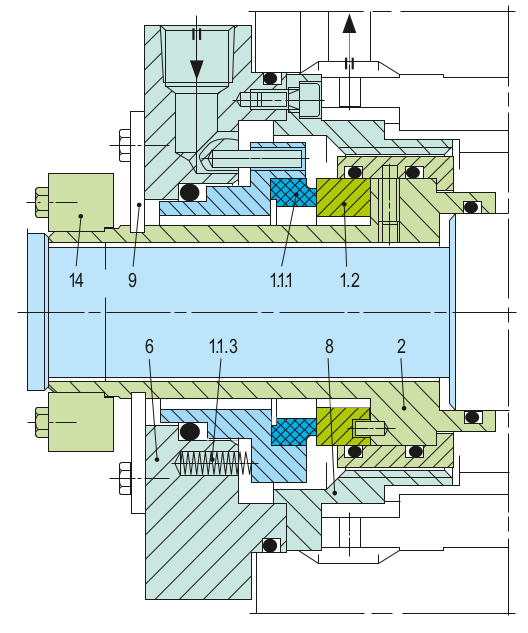

Boiler Feed Pump

Seal Type: SBV/163

Media Boiler Feed Water
Vg 57 m/s
Temperature 1850 C
Pressure 35 Bar

Feed Pump

Seal Type: SBV1/155

Media Demineralised Water
Vg 43 m/s
Temperature 1900 C
Pressure 25 Bar

Main Feed Pump

Seal Type: SBF /175

Media Feed Water
Vg 45 m/s
Temperature 900 C
Pressure 40 Bar

Flue Gas Desulphurization Pump

Seal Type: BR/135

Media Lime Slurry, Sulphate Solution
Vg 10 m/s
Temperature 1450 C
Pressure 16 Bar

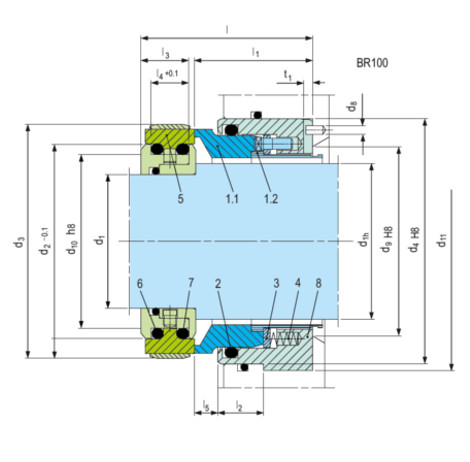

Residue Evacuation Pump

Seal Type: BR/140

Media Sulphate Solution
RPM 1500
Temperature 800 C
Pressure 12 Bar

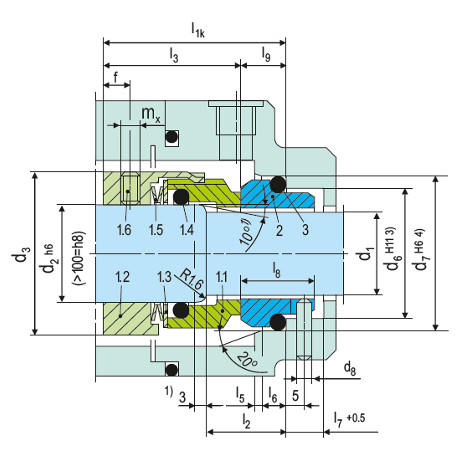

Condensate Pump

Seal Type: B700N/80

Media Condensate Fluid
RPM 1450
Temperature 1200 C
Pressure 22 Bar


Sealing systems featuring maximum operational reliability, convenient maintenance and low leakage rates with necessary environmental protective measures are standard requirements in modern power stations. The product range includes mechanical seals and supply systems for auxiliary and secondary pumps, boiler circulation pumps and feedwater pumps as well as mechanical seals and carbon floating ring seals for turbines, compressors and fans.
